LCD Touchscreen Flat Panel Digital Interactive Whiteboard For Classroom
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | LCD Touchscreen Smart Board Digital Flat Panel Interactive Whiteboard | Screen Panel | D-LED Panel |
|---|---|---|---|
| Display Rate | 16:9 | Resolution | 3264x2448 4K UHD |
| Contrast | 1200:1 | Color | 10bit,10.7B |
| Android OS | Android 11.0 OS | Camera | Built-in 13 MP Camera |
| High Light | Flat Panel Digital Interactive Whiteboard,LCD Touchscreen Digital Interactive Whiteboard,ROHS Smart Interactive Whiteboard |
||
Product Description

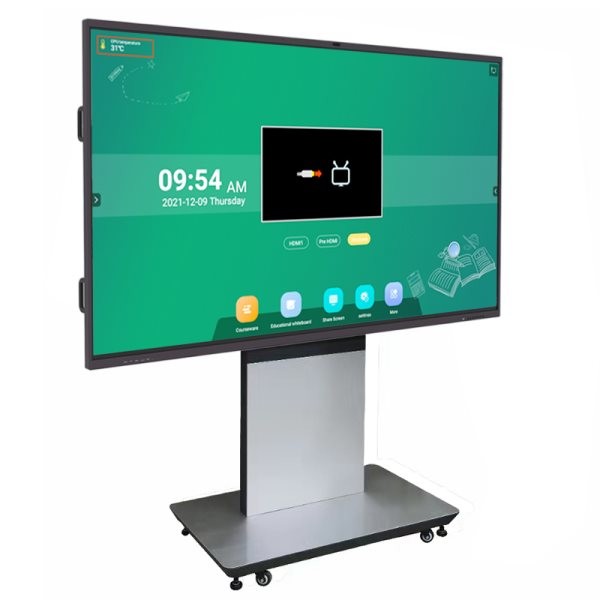

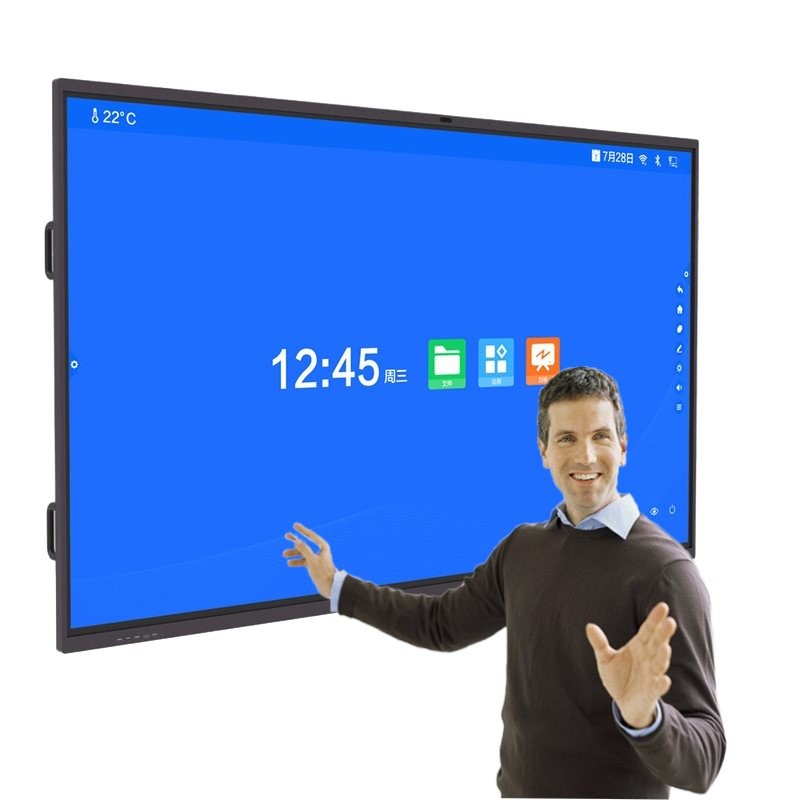

LCD Touchscreen Smart Board Digital Flat Panel Interactive Whiteboard For Classroom
With different sizes & frames and optional configurations, the Interactive Smart Board LCD Multi-touch Screen Android11.0 OS digital interactive class display with built-in 13MP Cameral offers various solutions for education, conference and business presentation ... etc.
The IR Interactive LCD Touch Screen Smart Board Specification
| Screen Panel | |||||
| Sizes | 55inch | 65inch | 75inch | 85/86inch | 98” |
| Sealing lamination Tech | Zero bonding | Zero bonding | Zero bonding | Zero bonding | Zero bonding |
| Screen Panel Type | D-LED | D-LED | D-LED | D-LED | LG D-LED |
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 | 3840 x 2160 | 3840 x 2160 |
| Brightness (type) | 320 cd/㎡ | 350 cd/㎡ | 400 cd/㎡ | 350 cd/m2 nits (typ.) | 500cd/m²(typ.) |
| Contrast | 4000:1 | 4000:1 | 1200:1 | 1200:1 (typ.) | 1300;1 (typ.) |
| Display Area | 1209.6*680.4 mm | 1428.5*803.5 mm | 1649.66*927.94mm | 1860.48 ×1046.52 | 2158.848*1214.352 |
| Pixel (mm)(H/V) | 0.21 x 0.63 | 0.372x 0.372 | 0.429 x 0.429 | 0.4935 x 0.4935 | 0.5622*0.5622mm |
| Display Rate | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Reviewing Angle | 178° | 178° | 178° | 178° | 178 °(H) / 178 °(V) |
| Colorful | 10bit,10.7B | 10bit,10.7B | 10bit,10.7B | 1.07B (10bit) | 1.07B (10bit) (V) |
| Response time | 8ms | 6ms | 6ms | 8ms | 5ms |
| Lifetime | Above 50,000h | Above 50,000h | Above 50,000h | 50,000 hrs (min.) | 30,000 hrs (min.) |
| Touch Glass | 4mm tempered glass / Anti-glared glass | ||||
| Sound & Network | |||||
| Speaker | 2*10W | 2*15W | 2*15W | 2*15W | 2*15W |
| Video Input/Output | HDMI: Max. 3840X2160@60Hz, HDMI 1.4/2.0,HDCP 1.4/2.2 | ||||
| Audio | PC/CVBS/Component Audio: Audio L/R input; Earphone/CVBS Output | ||||
| Network | Network: 10/100M auto-identification and DHCP | ||||
| WIFI | IEEE 802.11a/b/g/n/ac 2.4GHz/5GHz 2T2R WIFI | ||||
| Bluetooth | BT5.0 | ||||
| Android System | |||||
| Android OS | Andriod 11.0 OS | ||||
| Android CPU | 64-bit Quad-core ARM Cortex-A55 CPU, Max.1.9GHz; ARM Mali-G52 MP2 (2EE) GPU, 900MHz | ||||
| Video Camera & Microphone | |||||
| Lens of Camera | Built-in 13 Megapixels on the top of the frame, CMOS 1/2.3”, | ||||
| Resolution | MAX resolution: 3840*3024(4K) | ||||
| Focus | Auto-focus, plug play | ||||
| Operation System | Windows XP/ VISTA/ Win7/Win8/ Win10/Linux 2.6.24 & above Ubuntu, Mac OS 10.6 and above, Android 5.1 and above | ||||
| Array Microphone | Built-in 8-array Microphone. | ||||
| Signal to noise ratio 74dB, Sensitivity -28±1db Sound Pickup distance: 10 meters; | |||||
| AI smart chips, support Echo Cancellation, Beamforming, Environmental noise suppression , De-reverb, Sound source localization. Vocal Enhancement | |||||
Description of the IR Smartboard Interactive Whiteboards
* Infrared Multi-Touch technology, Infrared 20 touch-point, at most support 4 pens writing at the same time, fingers or any objects touch.
* Built-in 13MP Camera.
* Support sleep timing & shutdown memory channel function
* One-key child lock, U disk lock, apps setting function
* Compatible with Windows, Mac, Linux & Android OS, Google App
* Easy saving and sharing, just by scanning a code.
* Mirror screen: 4-picture transmission screen, compatible with Android & IOS, and WINDOWS OS (with the mirror dongle) , reverse control.
* HD LCD screen, with rich colors and fine-quality images, truly presents meticulous details, and gives customers almost visual enjoyment.
* Compatible with Google APP
* Free Whiteboard Software for Windows OS, which can directly Drag the Images /Text into Whiteboard from Website. And include all kinds of education tools, video player
Interactive Software
* Multiple Users Interactive Conference Software
* The Powerful Whiteboard Software

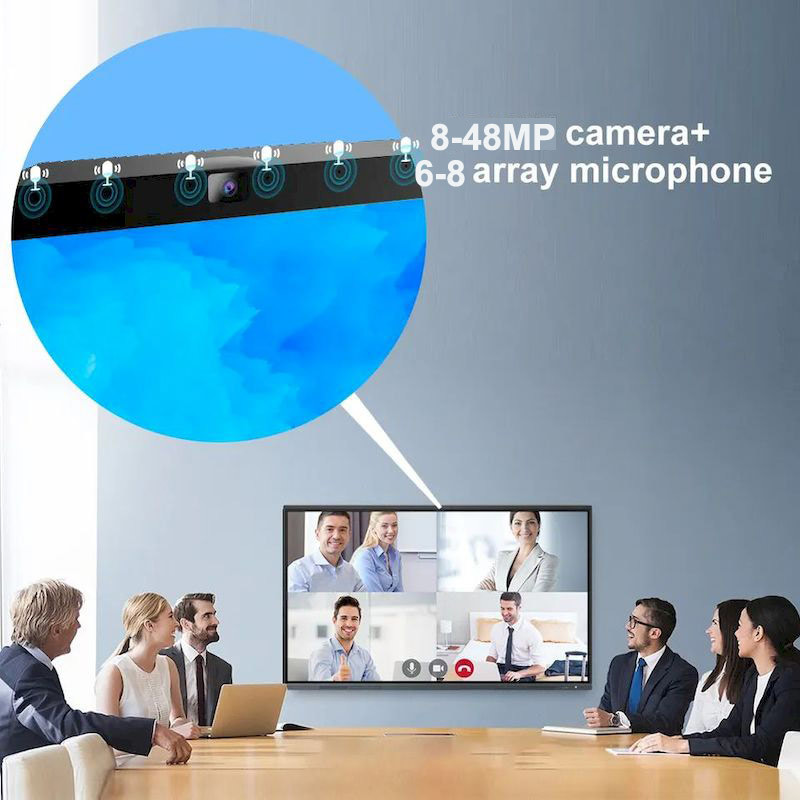

Built-in Camera and array microphone,8-48MP camera and 6-8 array for options
Multiple sizes available
FAQ
Even though we are in different places, we share the same sun and moon, let's together to make a better world!
Q: How to buy the unit?
R: You can directly click the website links to send an inquiry, our salesman will offer you detailed documents, including the price and parameters within 24 hours.
Or Call to directly talk: +86 13582949978 / 86 18126530678.
Q: Do you have a CE certification for the IPS Touchscreen Interactive Whiteboard?
R: Yes, our products comply with the international standard, provide ROHS, ISO, FCC-Document, BIS offers,
And support commerce invoices prices per customer requirements for customs clearance.
Q: What is MOQ?
R: 1. 1pcs for Normal Products of Smart Boards, Interactive Whiteboard, Graphic Drawing Monitor, All in One PC, Mobile Stand, and Digital Signage
Dropping Shipping Service Support
The more order Qty place, the cheaper price offer.
2. 5pcs for the customized products of Interactive Touch Table or Kiosk … etc.
And support the sample order, but it will have some charges for design, and labor.
Q: What's the product lead time?
R: The lead time for a sample order is 7 days, and for an FCL order is 20 days.
Q: What's your warranty policy?
R: Usually it is 1 year for Interactive Touch Screen Display, but it can extend for several years (3/5 years) at few costs.
Normal Interactive Whiteboard: Three years
Q: How can I pay for you?
R: You can pay us by T/T, credit card, Western Union, PayPal, or Alibaba Trade Assurance; L/C is acceptable too.
Q: How to resolve the problems after I buy from you?
R: We have a professional sales team and technical team to support you, most importantly, our engineer will offer direct instruction online or onsite. You will find us when you need us.
R: Do you support OEM?
R: Certainly, SKD / OEM / ODM, Partial customized support, including printing your logo on the products and cartons.. etc.
Q: Can I customize the device?
R: Accept customization, just provide the size, requirements, or functions, and application to the salesman, then our designer will work out the sketch first for approval.
Q: Do you offer whiteboard software for Interactive Smart Boards / Interactive Flat Panels?
R: Yes, FREE OFFER smart whiteboard software for the interactive flat panel display (Android & Windows OS / PC ).
Q: Does Smartboards Interactive Touch Screen, and Interactive Whiteboard have wall-mounted accessories?
R: Yes, ITATOUCH device with wall-mounted accessories, the accessories including,
- 2pcs touch pens
- Remote control.
- HDMI cable
- Touch-USB cable,
- Power cable,
- Wall Mounted.
And the Mobile Stand / Electric Flip Lift Carts option.
Q: ITATOUCH install the Windows OS if the unit built-in PC? Such as the OPS PC for Interactive Smartboards/Interactive Flat Panels / Interactive Whiteboard, and Digital Display with PC embedded.
R: Yes, usually will install a trial version of WIN 7, WIN 10 OS.
OEM version of WINDOWS OS offers if the customer needs it, but it will need to charge per actual cost.
Q: Can I customize the device?
R: Accept customization, just provide the size, requirements, or functions, and application to the salesman, then our designer will work out the sketch first for approval.
Q: Can we print our logo/website/company name on products?
R: Yes, please advise the size and Pantone Code of the logo.
Q: Do you inspect the finished products?
R: Yes, each step of production and finished products must pass the QC department's standard inspection before shipping.
